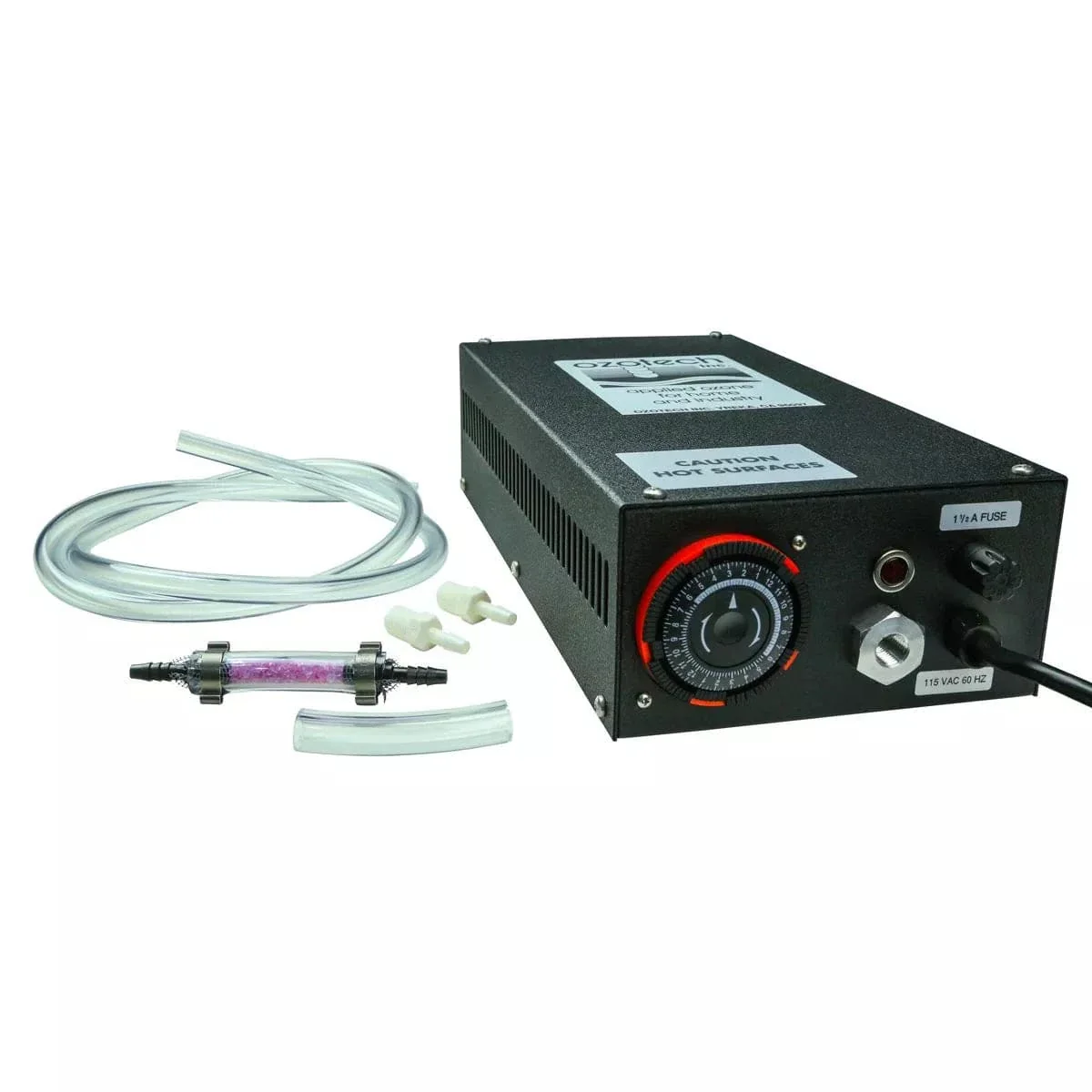

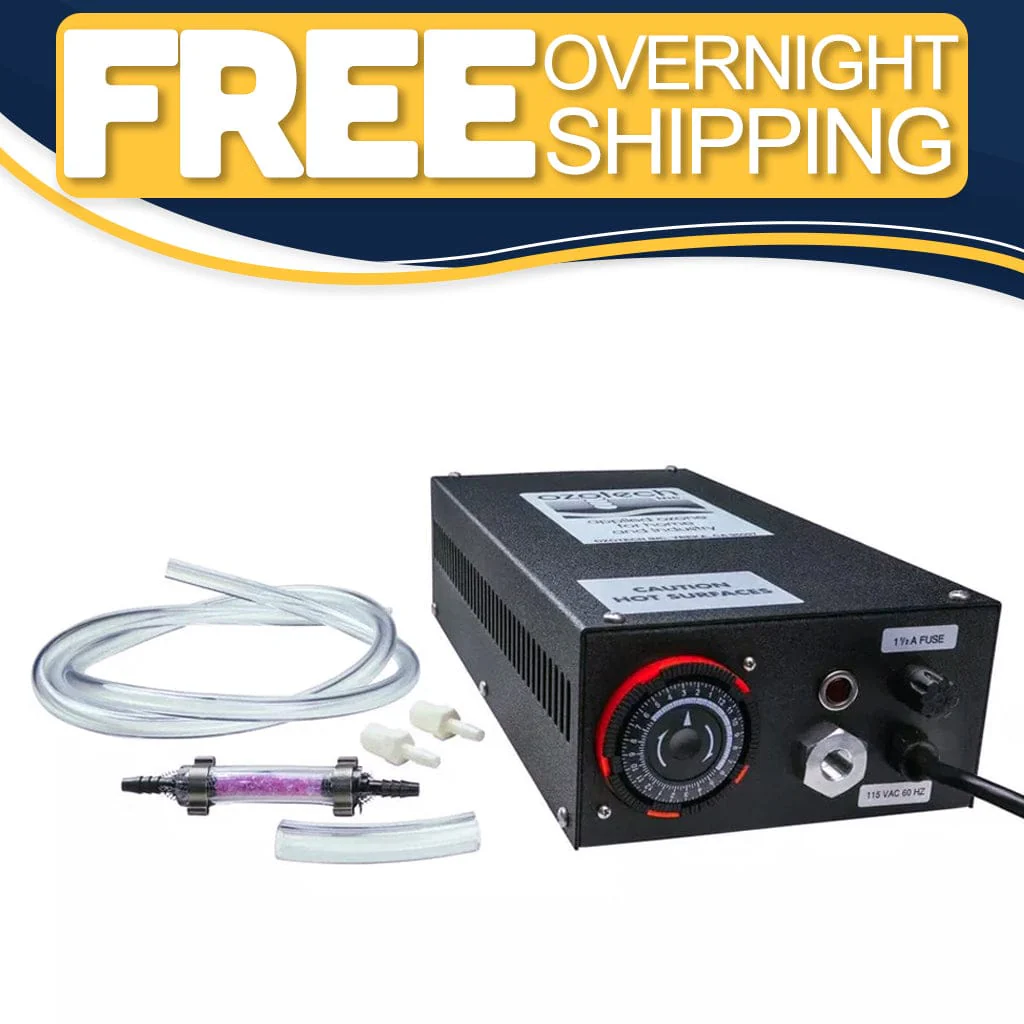

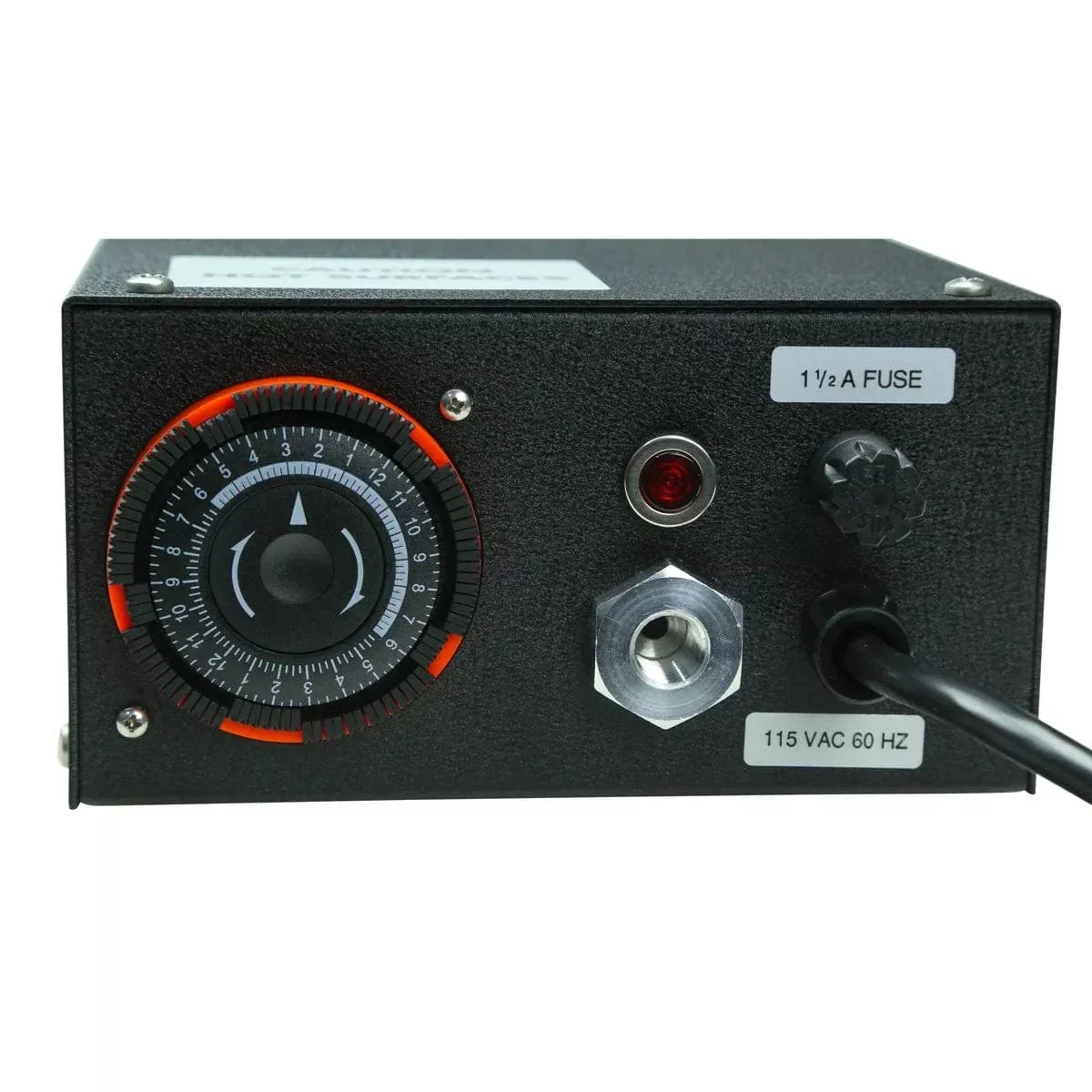

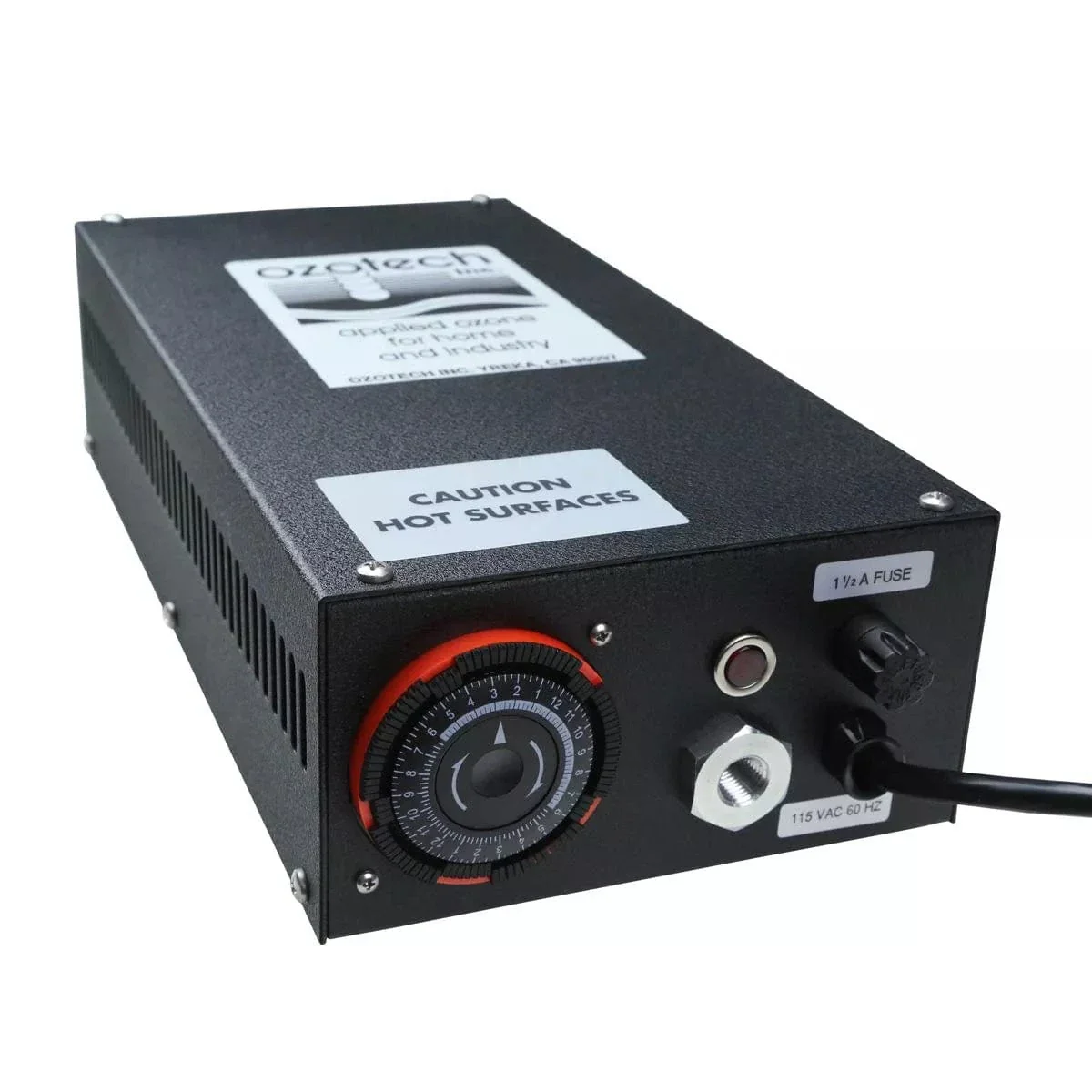

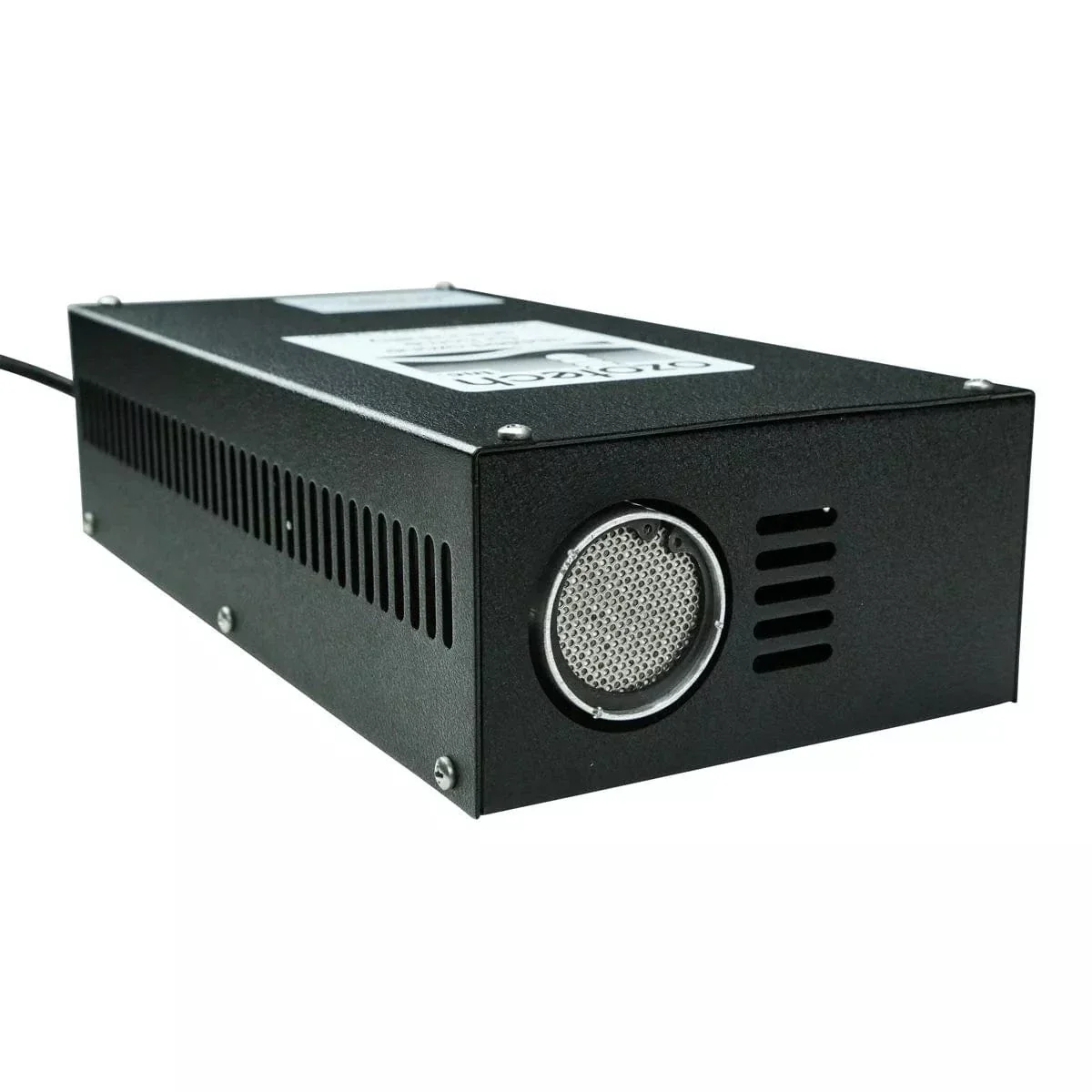

IQ-20 air Dryer - Ozotech

The Ozotech IQ-20 Air Dryer is a high-efficiency, single-bed regenerative air dryer that provides 20 SCFH of dry air for ozone applications. Ideal for improving the performance and lifespan of ozone generators, this unit pulls air through a single drying chamber during the day and regenerates automatically at night. Lightweight and corrosion-resistant, it’s perfect for wall-mounted use in both professional and hobbyist setups.





Key Features:





• Delivers 5–20 SCFH of ultra-dry air

• Regenerates drying bed automatically on a manual timer

• Wall-mountable, lightweight, and corrosion resistant

• Control timer allows manual scheduling of regeneration cycle

• Works with 115 or 230 VAC power

• Must be used with a pulling device such as a skimmer, vacuum pump, or ozone reactor (not compatible with air push systems)







Specifications:





• Flow Rate: 5–20 SCFH

• Wattage: 50 VA Typical / 90 VA Max

• Dew Point: -50°F (from 100% to 25% RH)

• Dimensions: 10” W x 12” H x 4” D



The IQ-20 Air Dryer is the reliable, low-maintenance solution for delivering dry air to your ozone system—helping to maintain peak performance and reduce fouling of the corona discharge cell
